Linkit One and DS1624 sensor example

The DS1624 consists of two separate functional units: a 256-byte nonvolatile E2 memory and a direct-to-digital temperature sensor.

The nonvolatile memory is made up of 256 bytes of E2 memory. This memory can be used to store any type of information the user wishes. These memory locations are accessed through the 2-wire serial bus.

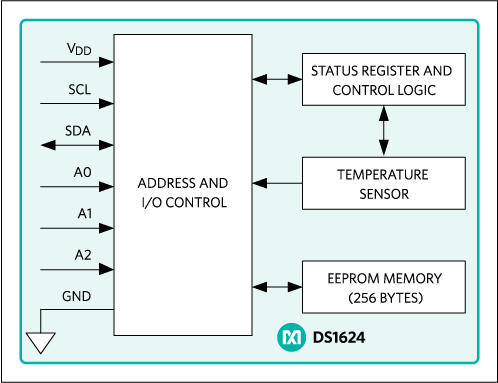

The direct-to-digital temperature sensor allows the DS1624 to measure the ambient temperature and report the temperature in a 12-bit word with 0.0625°C resolution. The temperature sensor and its related registers are accessed through the 2-wire serial interface. You can see a block diagram of the DS1624 below

Features

Reduces Component Count with Integrated Temperature Sensor and Nonvolatile E2 Memory
Measures Temperatures from -55°C to +125°C in 0.0625°C Increments
±0.5°C Accuracy from 0°C to 70°C
256 Bytes of E2 Memory for Storing Information Such as Frequency Compensation Coefficients
No External Components
Easy-to-Use 2-Wire Serial Interface
Temperature is Read as a 12-Bit Value (2-Byte Transfer)
Available in 8-Pin SO and DIP Packages

Connection

Code

You need to download and import the following library into the Arduino IDE – https://github.com/bluemurder/DS1624

This is the default example

[codesyntax lang=”cpp”]

#include <DS1624.h>

// Sensor presents all address pins connected to ground
DS1624 ds1624(0x00);

void setup()
{
// Begin serial connection at 9600 baud
Serial.begin(9600);
}

void loop()
{
float temperature;
bool valid;

// Get current temperature
ds1624.GetTemperature(temperature, valid);

// Print it
if(valid)
{
Serial.println(temperature);
}
else
{
Serial.println("Invalid value read from I2C bus");
}

// Wait a while
delay(1000);
}

[/codesyntax]

Testing

Open the serial monitor and you should see the following

19.87
20.25
21.19
22.19
22.94
23.25
23.75

Link

https://datasheets.maximintegrated.com/en/ds/DS1624.pdf

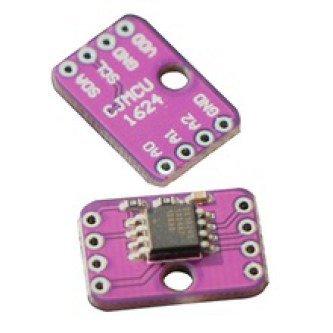

CJMCU-1624 DS1624 temperature sensor, high precision digital thermometer with memory function
