Wemos D1 hardware

The wemos d1 is an Arduino Uno-like wifi board based on ESP-8266EX. You can use the Arduino IDE, NodeMCU and there are other development environments available

The ESP8266EX is among the most integrated Wi-Fi chips in the industry. Measuring just 5mm x 5mm, ESP8266EX requires minimal external circuitry and integrates a 32-bit Tensilica MCU, standard digital peripheral interfaces, antenna switches, RF balun, power amplifier, low noise receive amplifier, filters and power management modules – all in one small package.

This board is ideal as an introduction for people wanting to get started with IoT, you can use the Arduino IDE, this means there are numerous sensors and modules that can be connected with libraries already written, it is low cost coming in under $10

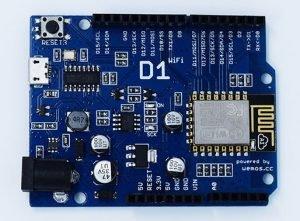

Wemos_D1_ESP8266

There is a USB connector, note that its a micro type and you can use this and also OTA for programming. I used the USB cable, it was the easiest way. The board can be pwered via the usb cable or you can plug in an external DC source, in the range of 7v to 24v. I recommend 9v.

The table below shows the pins of the wemos d1, the main difference between this and the Arduino UNO is that there is only one Analog input. All I/O pins are 3.3v, so some arduino shields will not work and obviously be careful what you connect to these pins.

Pin Function ESP-8266 Pin
D0 RX GPIO3
D1 TX GPIO1
D2 IO GPIO16
D3(D15) IO,SCL GPIO5
D4(D14) IO,SDA GPIO4
D5(D13) IO,SCK GPIO14
D6(D12) IO,MISO GPIO12
D7(D11) IO,MOSI GPIO13
D8 IO,Pull-up GPIO0
D9 IO,pull-up, BUILTIN_LED GPIO2
D10 IO,pull-down,SS GPIO15
A0 Analog Input A0



Installing with Boards Manager

Starting with Arduino IDE 1.6.4, the software allows installation of third-party platform packages using Boards Manager. There are packages available for Windows, Mac OS, and Linux (32 and 64 bit).

Install Arduino 1.6.5 from the Arduino website.
Start Arduino and open Preferences window.
Enter http://arduino.esp8266.com/stable/package_esp8266com_index.json into Additional Board Manager URLs field. You can add multiple URLs, separating them with commas.
Open Boards Manager from Tools > Board menu and install esp8266 platform (and don’t forget to select your ESP8266 board from Tools > Board menu after installation).



Code

You can open the examples folder and upload the blink sketch, its copied below for reference

[codesyntax lang=”cpp”]

void setup() {
pinMode(BUILTIN_LED, OUTPUT); // Initialize the BUILTIN_LED pin as an output
}

// the loop function runs over and over again forever
void loop() {
digitalWrite(BUILTIN_LED, LOW); // Turn the LED on (Note that LOW is the voltage level
// but actually the LED is on; this is because
// it is acive low on the ESP-01)
delay(1000); // Wait for a second
digitalWrite(BUILTIN_LED, HIGH); // Turn the LED off by making the voltage HIGH
delay(2000); // Wait for two seconds (to demonstrate the active low LED)
}

[/codesyntax]



Links

https://github.com/esp8266/Arduino

http://www.wemos.cc/wiki/doku.php?id=en:d1
